SMARTTOOL2 - Tuning, Remap, Diagnostic, Programming Smartkey and ODO

 Free update new version on March 20, 2024 (You should select correct serial number type below)  => Click to watch guide video

     - Serial number with 7 digits - version 11.0.2 ===> Click here to download (For All options serial 7 digits)

     - Serial number with 6 digits - version 10.0.3 ===> Click here to download (Not used for TMAX option - serial 6 digits)

             Please contact WhatsApp + 84 943 967 767 for support if you have any problems after updating.

• OFF Smartkey - Winner X - V3 - 2022 (K2P-V61), Scoopy 2021 (K2F-T21, K2F-N11), SH Mode 2021 (K1NA-V01)
• RESET SCU, change the HONDA SCU part number 33 pins: K01, K29, K35, K77, K97, K0G94, K0R, K1N

 New version 9.9.9 on May 19th, 2022 (NOT USED FOR TMAX VERSION)

1. UPGRADE LICENSE "REMAP YAMAHA EXCITER, MXKING, SNIPER" (2015 - 2022)

• EXCITER 150, SNIPER, MX-KING 150 INDO (2015 - 2018): 2ND0, 2PV0, B180
• EXCITER 150 LED, SNIPER, MX-KING 150-LED INDO (2019 - 2020): 2ND2 & 2PV1
• EXCITER, SNIPER 155-VVA (NON SMARTKEY) (2021 - 2022): B5V1
• EXCITER, SNIPER  155-VVA (SMARTKEY) (2021 - 2022): B5V0
• Reset to New ECMID of ECM EXCITER, SNIPER 155 (2021-2022): B5V0
• License Fee: 150$ from O, F, H, R version to O+, F+, H+, R+ (Contact Whatsapp: +84.943.967.767)

2. UPDATE "REMAP ACG KLINE" (84 ECU SHINDENGEN 2013-2022) (H, R) (Free)

(LEAD, AB, SH MODE, SH, PCX, VISION, VARIO, CLICK, BEAT NEW, BEAT STREET, ADV...)

*) Add new bikes:

• VARIO 160 (2022) - K2SA-N02-IN01
• AIRBLADE 150 (2022) - K3AA-V01-V11
• ADV 160 (2022) - 30400 - K0WL-NB1

3. SMARTKEY FUNCTION (Free)

• Read all real KEYID store in SCU (Smartkey Control Unit) of Yamaha & Suzuki

4. ODO CORRECTION 2022 (Free)

• YAMAHA NVX/ AEROX - 2021
• HONDA VARIO 160 - 2022
• HONDA GENIO 110 - 2019

• SMARTTOOL2 is a handset diagnostic tool that was researched and produced in Vietnam, this multifunction device is used for motorcycles equipped with PGM-FI electronic fuel injection, anti-lock braking system, smart key system, immobilizer system, odometer system, LED lighting system. In addition, SMARTTOOL2 also integrates one of the latest technology which is remapping, tuning and opening the RPM limit, adjusting the A/F for models Honda, Yamaha, Piaggio/Vespa and Suzuki
• The tool with a simple interface and easy to use
• ALLMOTO app was used free for searching electrical circuit diagram and repair guide
• Technology transfer, technical support department
• Using in many languages: English, Vietnamese, Indonesian
• Auto-update on the internet, customers can update by themselves
• Free for update and warranty in 12 months
• Distributors in China, England, France, Italy, Japan, Korea, UAE, Israel, Indonesia, Thailand, Myanmar and other countries
• Support all motocycles: HONDA, YAMAHA, PIAGGIO, SUZUKI, SYM, KYMCO
• Support ECU/ECM manufacturers: Shindengen, Keihin, Denso, Magneti marelli

  1. Diagnostic engine system/ PGM - FI system (All version)

• Auto seach motobike
• Read current and history DTC
• Erase DTC, reset ECM
• Engine Live Data
• Check A/F ratio
• Analysis Emission
• View ECU/ ECM Info
• Adjust CO Value (A/F ratio)
• Check sensor operation
• Active test component
• Software upgrade ECU for Honda and Piaggio/Vespa
• Environmental factor / Altitude setting
• Reset the idle air control valve IACV / ISC
• Reset / set the "0" point position of the throttle position sensor
• Erase error P0611 full EEPROM memory of Piaggio / Vespa vehicles
• Supports all motorcycle HONDA, YAMAHA, PIAGGIO, SUZUKI, SYM and KYMCO

2. Diagnostic ABS system (All version)

• Read current and history DTC
• Erase DTC
• ABS Live Data
• Active test component
• View ACU Info
• Support motorcycl: HONDA, YAMAHA and PIAGGIO

Click on here to get more details about the list of motors, engine system function and ABS

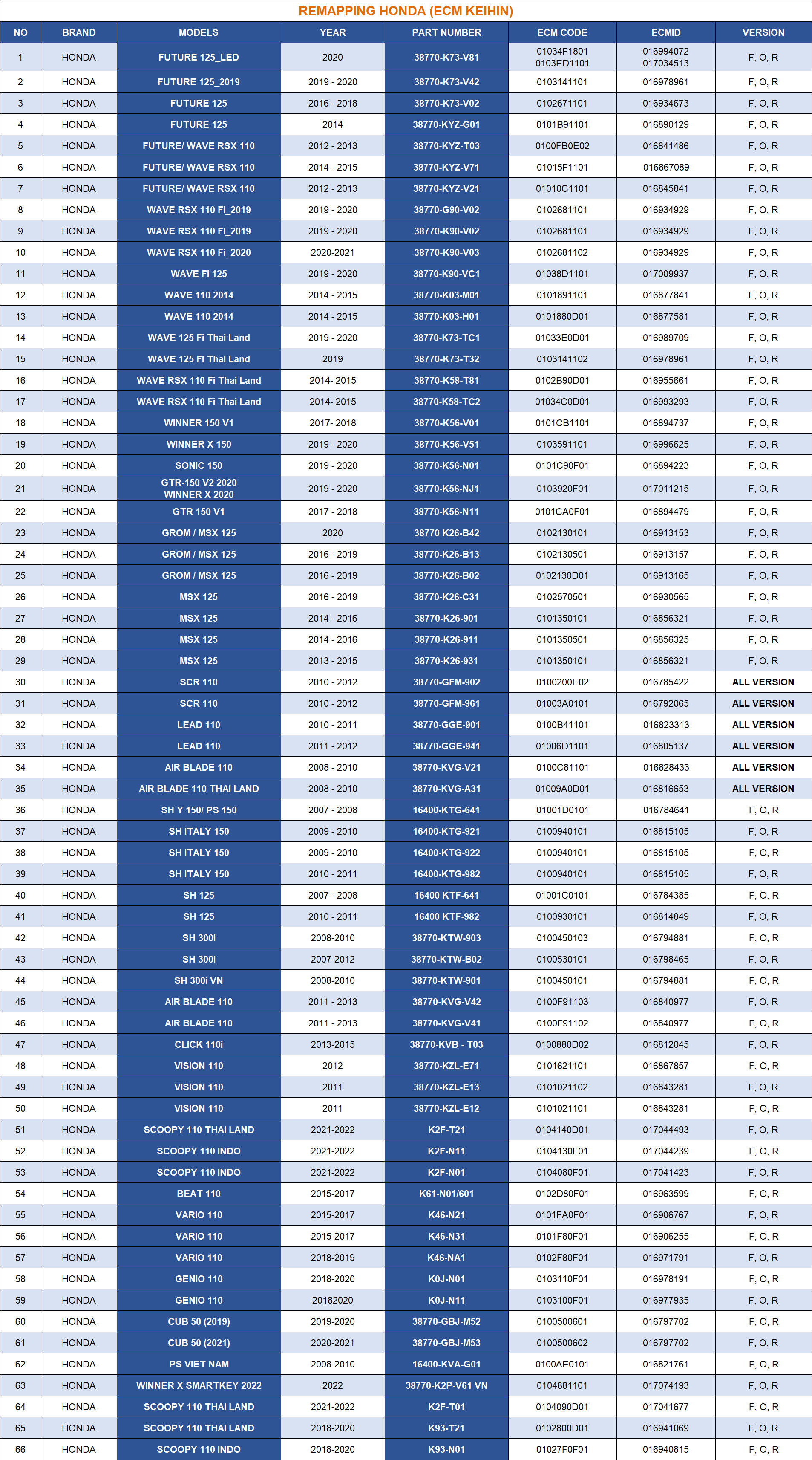

 3. Remap, tuning and open RPM limit (Supported versions: F, R, G)

• In addition to the normal functions as the device diagnostic, SMARTTOOL2 is also integrated with remapping and tuning technology, open RPM limit
• Tuning or Remapping is the same. Tuning is the editing of the fuel and fire maps, Remapping is a refresh of the fuel and fire maps in ECM. Revolving is opening the rpm limit within the permissible limit to meet the mechanical part of the manufacturer
• Adjusting the Air/Fuel ratio (A / F)
• Improved engine performance in accordance with the different working modes and terrain conditions and operating environments of the motobike
• Compensate for small mechanical wear (eg, injector mechanical ...) or error due to aging of sensor, leading to drift of sensor value range.
• Handling some car fuel consumption cases high injection time, fuel saving, low Garanti
• Open the rpm limit or return the manufacturer zin
• For a different driving experience - more realism
• Support remapping for Honda SH150i / PS150 entered (2007-2008) ECU code: 16400 - KTG -xxx
• Support tuning for PIAGGIO ECM / ECU codes: 26M3G1HW and 28M3G1HW (see support list)
• OFF the oxygen sensor with Piaggio / Vespa
• Set the speed at idle (from 1500 RPM to 1800 RPM)
• Height setting (above 2000m and below 2000m)
• Reload original main data of the Piaggio / Vespa MCU vehicle

List of supported motor

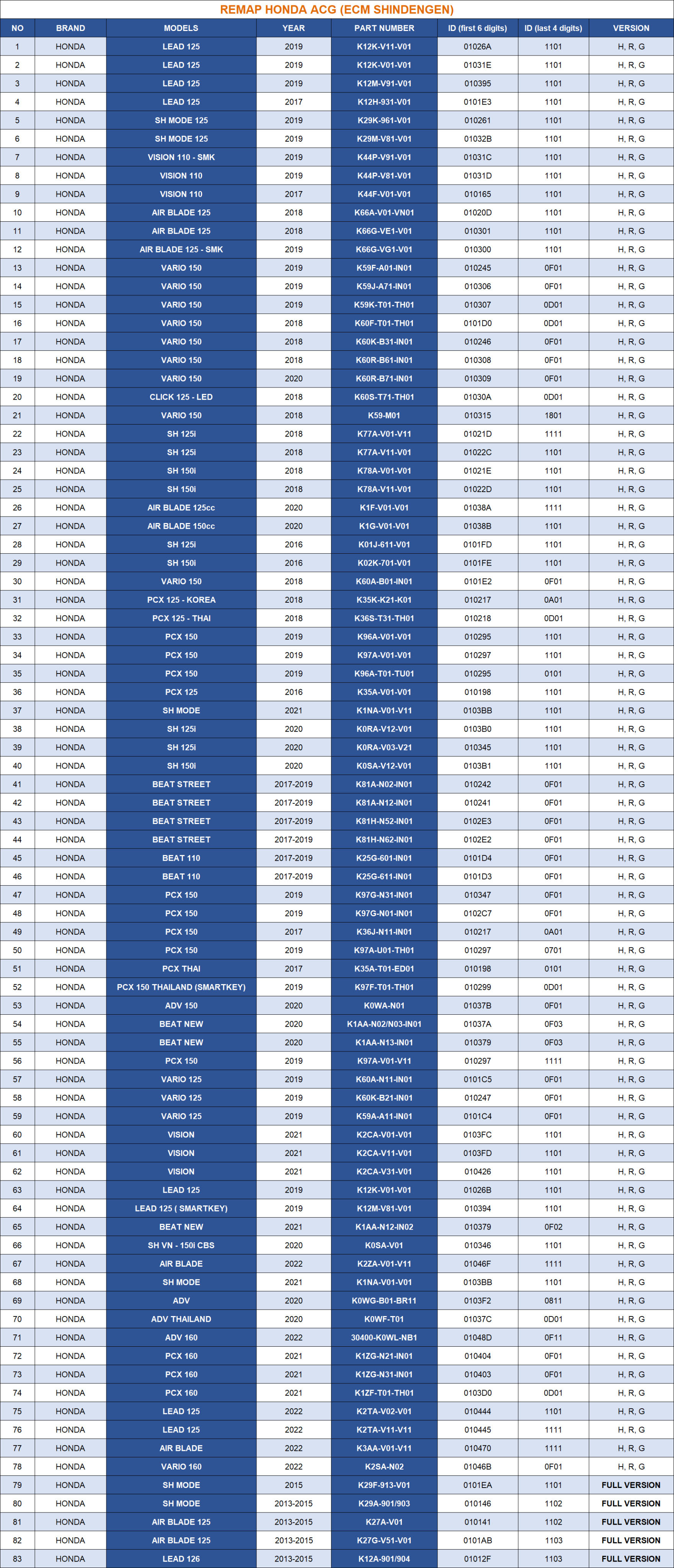

4. Remapping for ECM Honda ACG – Shindengen (Supported versions: H, R, G)

• Support to tune/remap for 22 types of ECM Honda ACG (2016-2021)
• Include 300 MAP files with configuration from virgin motors to modified throttle, air filter, bigger piston, exhaust pipe, fuel injector,…
• Use MAP to turn OFF smart key state, change smart key into mechanical key (remove the second-factor authentication)
• Use MAP to turn OFF code error – 88 when the EVAP valve is damaged, reuse ECM no need to change into a new one, save the cost Eliminate gas shortage, engine weakness, reduce fuel consumption
• Help the bike can accelerate fast, smooth, light, reduce engine chatter and explosion behind the exhaust
• Open the RPM limitation (rpm) up to 10500 – 12000 RPM
• Optimize engine power, optimize air-to-fuel ratio (A/F) according to each speed range, environment, terrain, and driving style
• Auto-Remap, no effect to ECM, simple, no need laptop or computer
• All of the MAP files were run in real configuration, tested HP, tried by Dyno, optimized with AFR(optimize air-to-fuel ratio A/F)

List of supported motor

5. Smart key/ Keyless Honda, Yamaha and Suzuki (Supported versions: T, H, F, R, G, M)

• Read KEYID from smart box when all keys lost
• Read ECMID from smart box
• Read/reset ECMID from ECM
• Erase key lost
• Erase the missing key code
• Reflash EEPROM data of smart box
• Register new keys in the all keys lost case.
• Add key by key
• Check the synchronization between key and smart box
• Re-use the Honda “used key”
• Change ON / OFF key status
• Sync smart box and ECM automatically
• Replace new ECM
• Register up to 6 keys at once bike Honda

List:

• HONDA: AIRBLADE (2018-2023), CLICK 125i (2018-2023), LEAD 125 (2017-2023), PCX( 2016-2023), SH 125/150/300(2016-2023), SH MODE ( 2016-2023), VISION (2018-2023), VARIO 125/150 (2018-2023), ADV, X-ADV 750, FORZA 300 ( 2018-2020), SCOPPY (2017-2023), X-ADV 750 2021, FORZA 300 2021
• YAMAHA: AEROX (2018-2023), GRANDE ( 2018-2023), JANUS ( 2018-2023), NVX (2018-2023) ,LATTE (2020-2023), FREEGO (2020-2023) QBIX, XMAX, NMAX,  T-MAX 530i, T-MAX DX, T-MAX SX SPORT, T-MAX IRON MAX (2015-2021)
• SUZUKI: RAIDER FI (2016-2020), GSX FI (2016-2020).
• Supported part number: K12, K44, K59, K66, K01, K02, K77, K78, K29, K35, K36, K96, K97, K1F, K1R, K1N, K1Z, K1Y, K0R, K0S, K2C, K1W, ...

Click on here to get more details about the list of motors and the function - programming smart key

6. Immobilizer system PIAGGIO/VESPA (Supported versions: T, H,F, R, G, M)

• Register the new keys in the all keys lost case.
• Reset, erase all keys of IC / ECM.
• Support register new keys.
• Support list : AC13I, AC191, AC19I, AC20I, AC21I, AC23I, AC24I, AC25I, AC27I, AC32I, AC5I, AC8I, ACI600, AC601, ACI602, ACI603, ACII, AC2I, AC5I, AC8I, AC13I, MIU1, MIU2, MIU G3/RIU1, MIU4, PGN04/PGS02/PGS06/PGT01.

Click on here to get more details about the list of motors and the function - programming immobilizer Piaggio/ Vespa

7. LED system (Supported versions: T, H, F, R, G, M)

• Activate the LED system
• Support checking LED system

8. Odometer adjustment (Supported versions: T, H, F, R, G, M)

• Read the current mileage
• Correct odometer value of motorcycle dashboard.
• Restore the original data
• Automatic correct odometer
• All moto, motobike Honda, Yamaha, Suzuki, Kawasaki and Piaggio

List model

• HONDA: Airblade (2013-2019), Airblade 125/150 2020, Click (2013 -2020), Forza 2018, Msx 125/150, Future Neo, Future X, Lead 125 (2013-2020), PCX( 2008-2019), PCX 2021, SH 125/150/300(2015-2016), SH 125/150(2017-2019), SH 125/150 2020, SH Mode ( 2015-2020), SH Mode 2021, Sonic 125, Vario 125/150 (2013-2020), Vision 2021, Wave 125, Winner 150, Winner X, Zoomer X, Scoopy 2018, XADV 2018, CUB, Beat 2018, Beat Stress, CBR 15DR/150/250, CBR 500/500F/650, CBR 1000/ 1000RR, CRF 250…
• Hãng YAMAHA: Aerox, Acruzo, Janus, Nvx, TFX, MSLAZ, Acruzo, Exciter 150 (2014-2021), Fz150/150i/FZ16, Grande, Nouvo LX/4, Nouvo SX/5, Qbix, R1/ R6, R15/RR15D,  R15 2016, R15 , Free Go 2019, Nmax ABS, Grand Filano, Xmax, Tmax, MT07, MT09, FreeGo, Latte, Vixion 2018
• PIAGGIO/VESPA: V4_ 50cc, V6_ 50cc, Liberty( 2017-2019), Medley, Primavera (2017-2019), Sprint (2017-2019), Vespa 2020, with Logo _EEPROM_R5F, no Logo _EEPROM_R5F
• SUZUKI: An150, En 150, Raider (2012-2015), Gsx ( 2009-2015), Gsx Fi (2016-2019), Raider Fi( 2016-2019)…
• KAWASAKI: Z1000R/Ninja, Z125, NINJA 250, VERSY 650, Z300, Z900,…

Click on here to get more details about the list of motors and the function - programming the odometer

9. Functional table packages:

10. List of accessories

List of model packages:

• Version 2T: Diagnostic + ABS + Upgrade software for Honda, Piaggio/ Vespa + SMARTKEY + ODO (Retail price: 562$)

• Version 2R: Diagnostic + ABS + Upgrade software for Honda, Piaggio/ Vespa + SMARTKEY + ODO + Remap Honda Keihin + Remap Honda ACG + Remap Suzuki + Remap Piagigo + Remap NVX/Aerox (Retail price: 876$)

• Version 2G: Diagnostic + ABS + Upgrade software for Honda, Piaggio/ Vespa + SMARTKEY + Remap Honda Keihin + Remap Honda ACG + Remap Suzuki + Remap Piagigo + Remap NVX/Aerox + Remap Yamaha Exciter/ MxKing (Retail price: 924$)

• Version 2R+: Diagnostic + ABS + Upgrade software for Honda, Piaggio/ Vespa + SMARTKEY + ODO + Remap Honda Keihin + Remap Honda ACG + Remap Suzuki + Remap Piagigo + Remap NVX/Aerox + Remap Yamaha Exciter/ MxKing (Raital price: 1019$)

• Version 2M: Diagnostic + ABS + Upgrade software for Honda, Piaggio/ Vespa + SMARTKEY + ODO + SMARTKEY for Tmax (Retail price: 716$)
