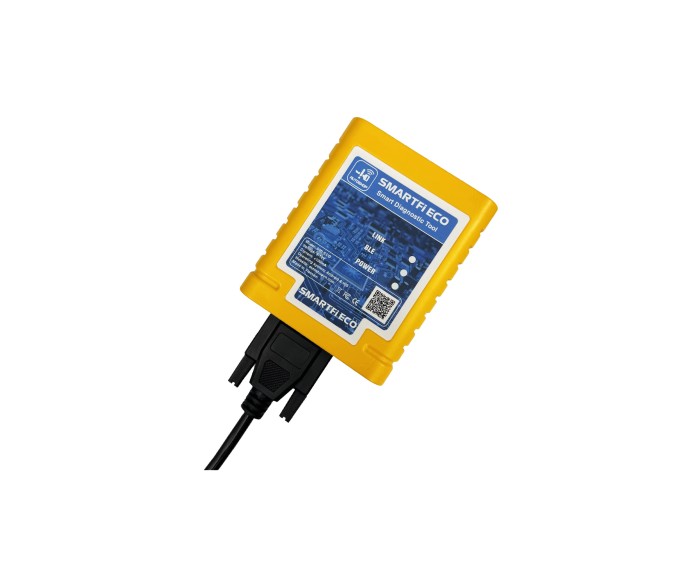

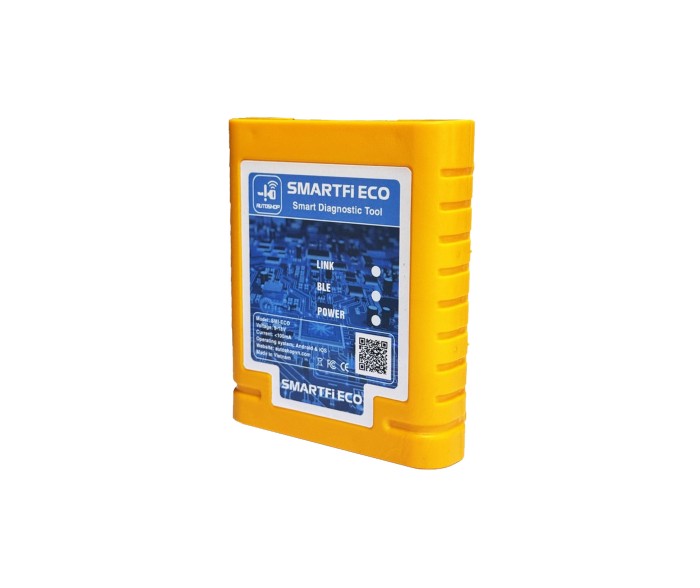

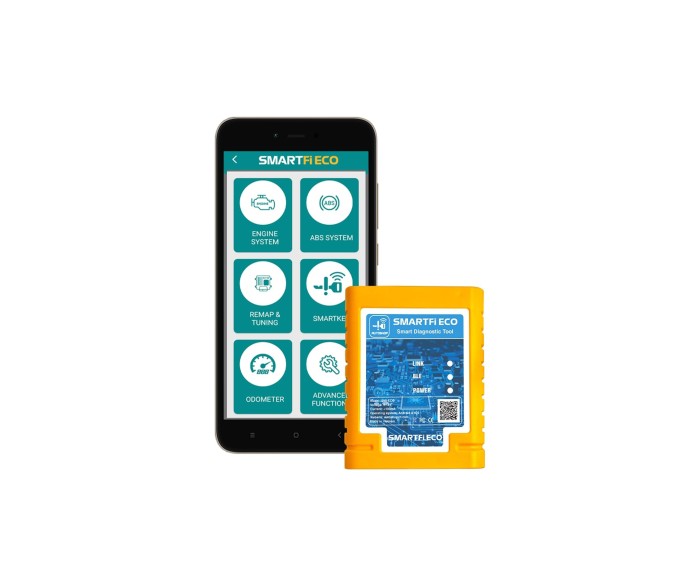

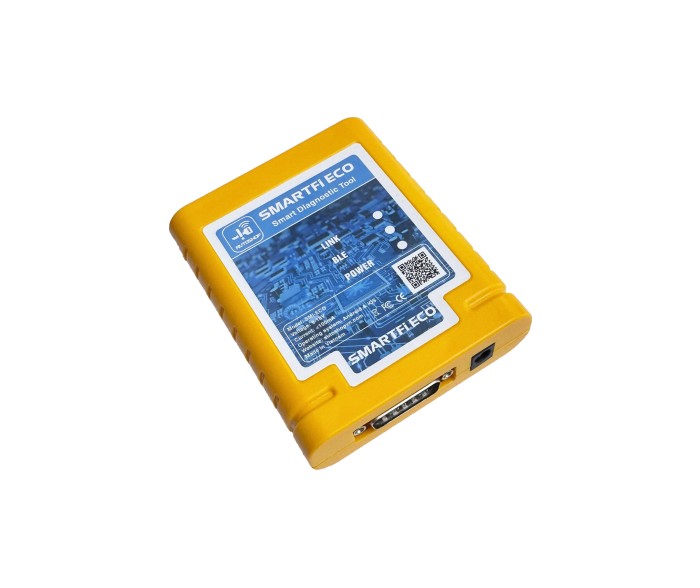

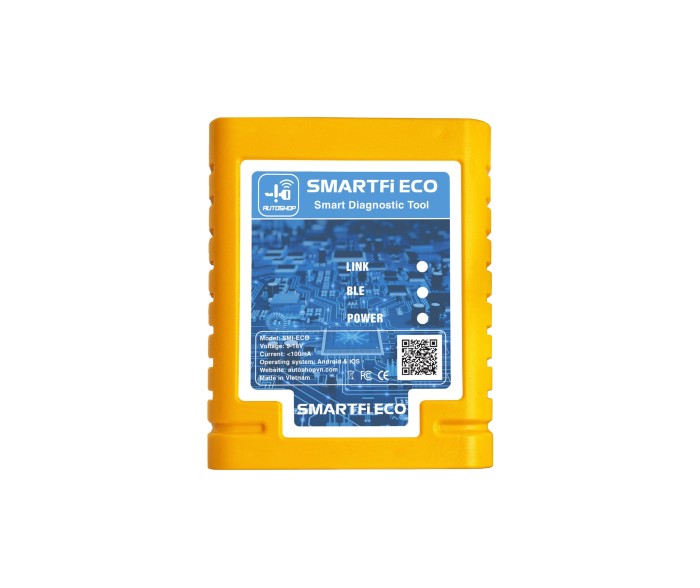

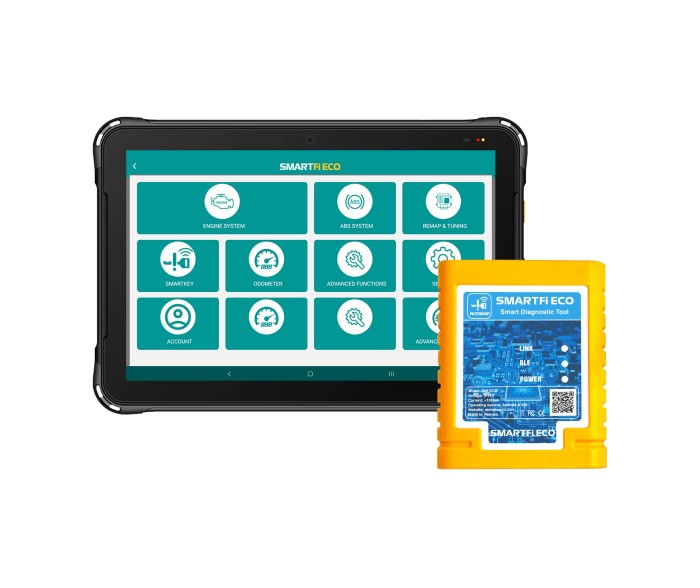

SMARTFI ECO

➢ Functions can be purchased separately when buying the basic version (contact hotline: +84 943.967.767 for support)

Option Basic: Hardware SMARTFI ECO + Diagnostic Engine + ABS - $180

Option 1: Program Smartkey HONDA, YAMAHA, SUZUKI - $150

Option 2: Program ODO - $80

Option 3: Remapping and tuning for engine ECM HONDA (via K-line) - $120

Option 4: Remapping and tuning for engine ECM YAMAHA (via K-line) - $100

Option 5: Programming Smartkey Yamaha (2024 - 2025 Models) - $50

Option 6: Reading/ Renewing ECMID Honda via K-line - $40

Option 7: Remapping and tuning for engine ECM YAMAHA & SUZUKI (backdoor) - $80

Option 8: Reset tcu YAMAHA - $50

Option 9: Read pincode in FOB - $55

➢ SMARTFi ECO is a professional diagnostic device for motorcycles and scooters, developed by Autoshop Vietnam. This is the economy version, designed to deliver all essential functions while keeping costs optimized, making it an ideal choice for technicians and workshops.

🔹Advantages:

• Cost-effective: Affordable while still covering essential functions.

• Compact design – easy to carry.

• User-friendly interface, suitable for both professionals and beginners.

• Supports multiple popular motorcycle brands in Southeast Asia.

➩ Smartfi ECO is the smart choice for motorcycle technicians, smartkey locksmiths, and small garages looking for a multi-functional, economical, and efficient diagnostic solution.

LIST OF FUNCTIONS

1. Engine system diagnostics

2. ABS brake system diagnostics

3. Remapping and tuning for engine ECM HONDA (via K-line)

4. Remapping and tuning for engine ECM YAMAHA (via K-line)

5. Remapping and tuning for engine ECM SUZUKI (backdoor)

6. Remapping Yamaha - open ECM (backdoor)

7. Smart key system programming

8. Programming Smartkey Yamaha (2024 - 2025 Models)

9. Reading/ Renewing ECMID Honda via K-line

10. ODO value adjustment

11. Check battery

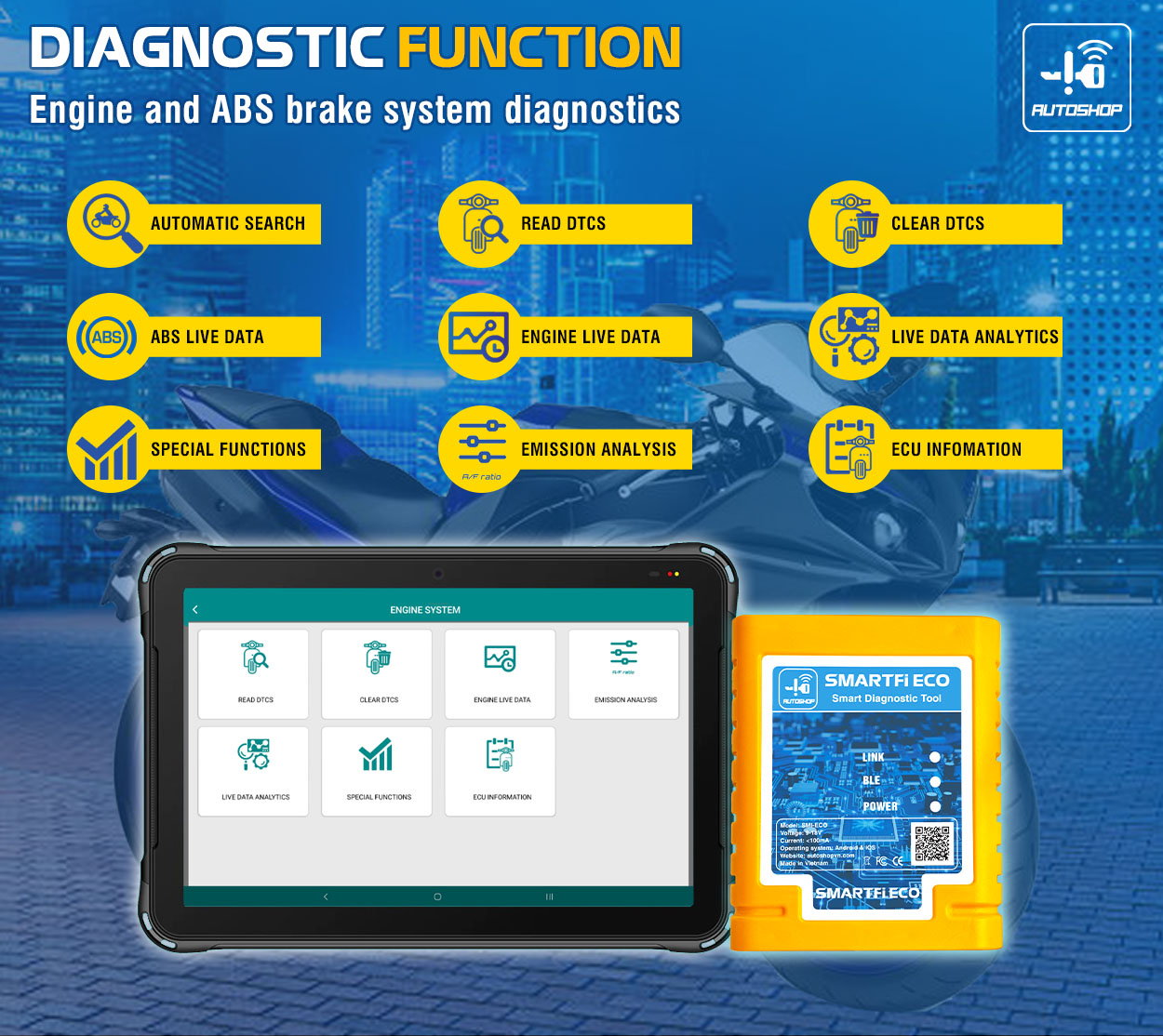

1. Engine and ABS system diagnostics

-  Automatic motorcycles identification and connection

-  Reading and clearing historical/current errors

-  Live engine data analysis

-  ECM EEPROM memory reset

-  Saving/reviewing engine data

-  Displaying ECU information

-  Throttle position sensor (TPS) calibration

-  Actuator and sensor activation/checking

-  IACV/ISC idle control valve reset

-  Analyze fuel mixture richness (A/F ratio)

-  Adjust C.O (A/F ratio)

-  ECU software upgrade

-  Support diagnostics on Canbus motorcycles

- Support for brands: Honda, Yamaha, Piaggio/Vespa, Suzuki, Sym, Kymco, Kawasaki

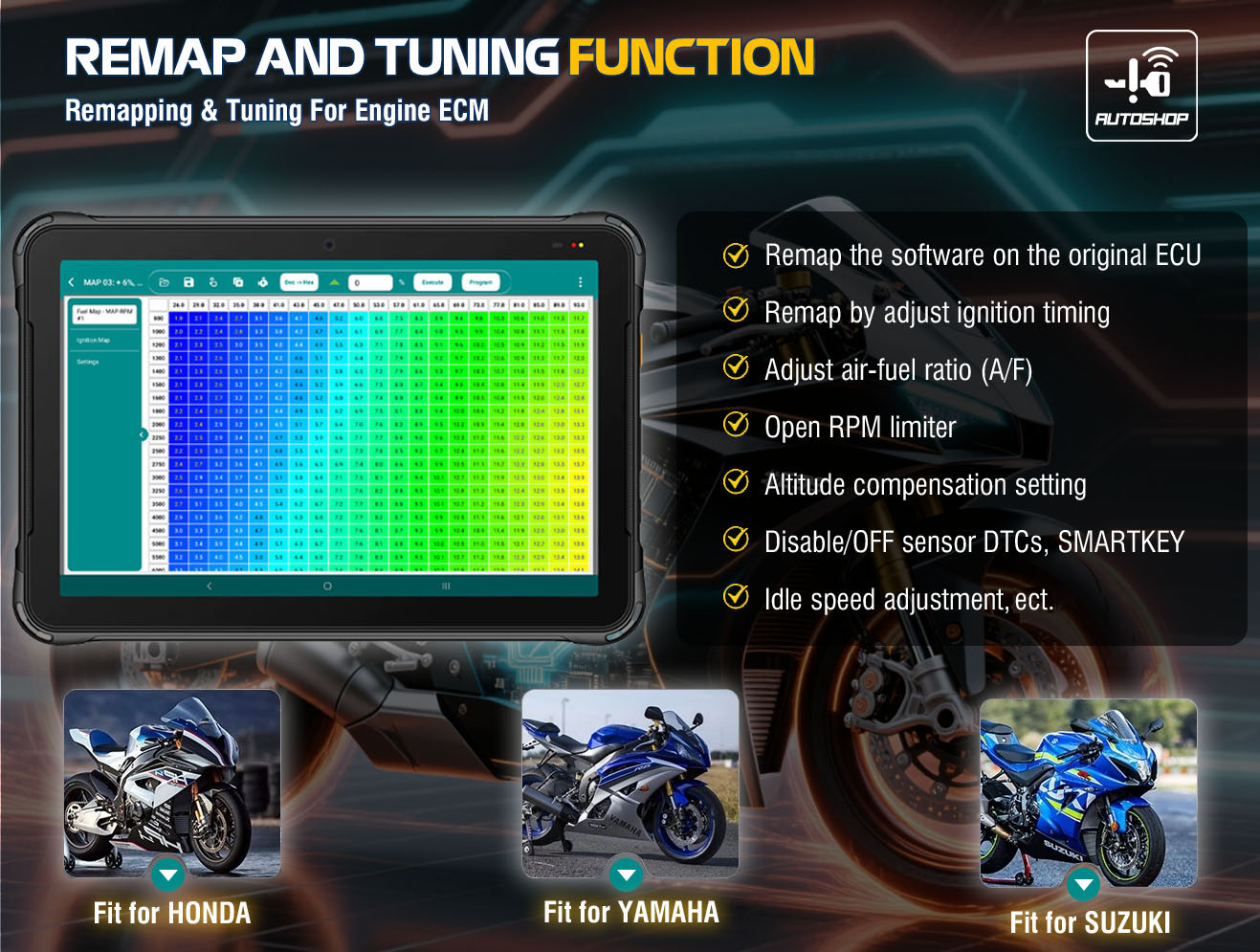

2. Remapping and tuning for original ECM

-  Remap the software on the original ECU

-  Fix throttle lag and sluggish performance on Honda motorcycles

-  Solve low idle or cold-start difficulty issues

-  Remap to reduce fuel consumption by adjusting injection timing

-  Remap by adjust ignition timing

-  Adjust air-fuel ratio (A/F)

-  Open RPM limiter

-  Altitude compensation setting

-  Idle speed adjustment

-  Disable/OFF sensor DTCs such as TPS, MAP, IAT, O2, etc

-  Disable/OFF IACV function

-  Disable/OFF SMARTKEY in ECM

-  Disable/OFF EVAP valve and clear DTC 88 in ECM

-  Exhaust-fuel-ignition mapping, Thai idle map

-  Mapping options for stock motorcycles, throttle upgrades, or aftermarket exhausts

-  Custom remapping based on motorcycle type, ECM code, terrain, and operating environment

-  Supported for: HONDA, YAMAHA, SUZUKI

3. Remapping Yamaha - open ECM (backdoor)

-  Open RPM limiter up to 14,000 rpm

-  Remap for increased engine power

-  From stock motorcycles to upgraded throttle body, air filter, big bore kits, exhaust, injectors, etc.

-  Enhance acceleration smoothness for a superior riding experience

-  All maps are thoroughly tested

-  Currently requires ECM opening (backdoor) for these models

-  Support ECMID reset for smartkey-equipped motorcycles

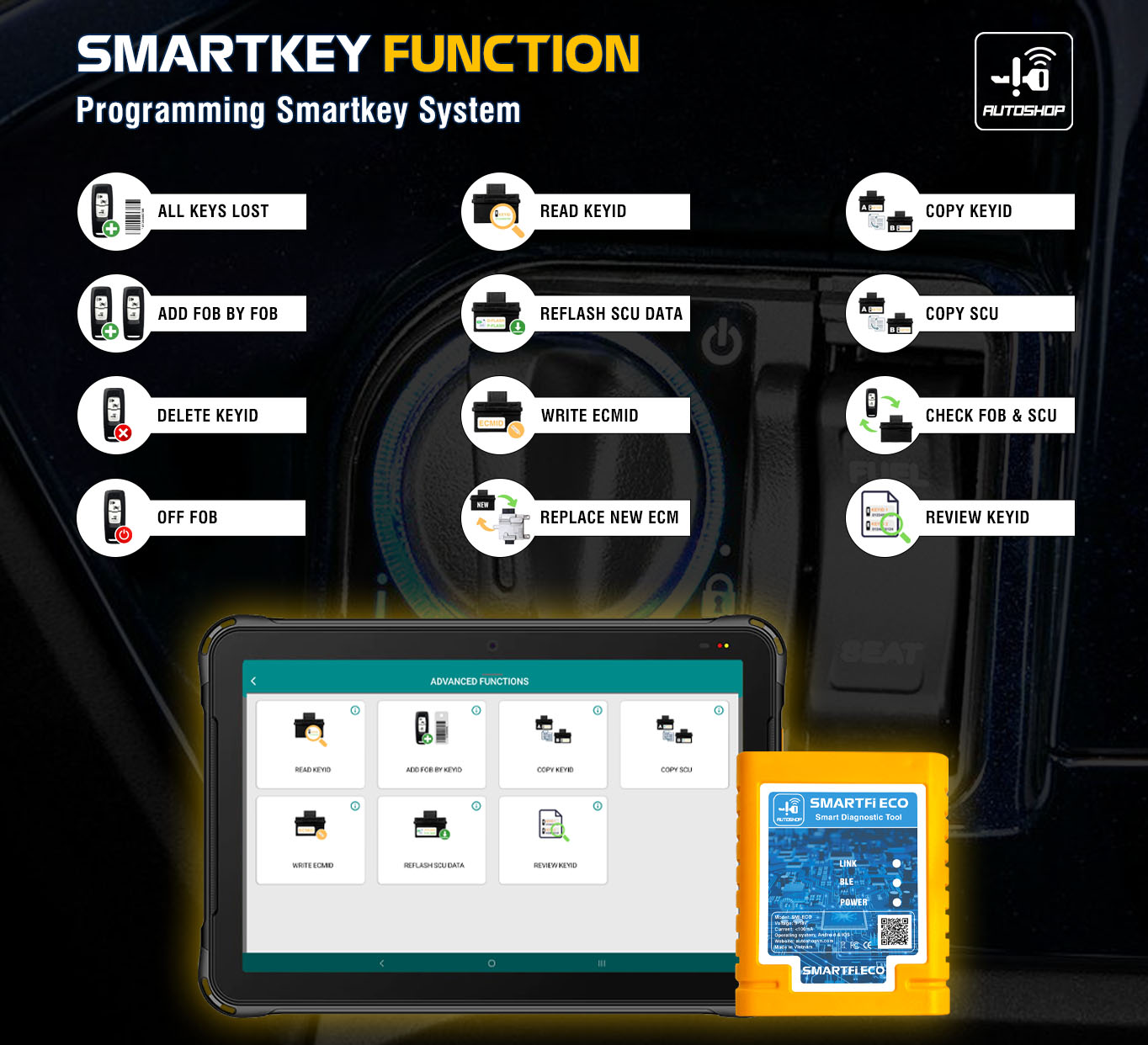

4. Programming Smartkey System

-  Program additional keys when all keys and code KEYID are lost

-  Program additional keys when the original key is still available

-  Delete/disable lost or dropped keys

-  Check synchronization between the key and smart key controller

-  Read KEYID and ECMID codes in SCU

-  Read/reset ECMID in ECM via DLC connector (optional)

-  Display the number of registered keys and their ON/OFF status

-  Reuse FOB keys when ID code is available

-  Change ON/OFF status of keys in SCU

-  Restore original data in SCU

-  Copy SCU data

-  Change part codes: K01, K77, K96, K97, K0R, K1B, ...

-  Register new keys when all keys are lost for SCU models K1N, K1B

-  Supported for: HONDA, YAMAHA, SUZUKI

5. Programming Smartkey Yamaha (2024 - 2025 Models)

-  Program an additional key when the original key is available

-  Delete/OFF lost or dropped keys

-  Program a new key when all codes and original keys are lost

-  Check and synchronize the key with the smartkey control unit

6. Reading/ Renewing ECMID Honda via K-line

-  Read ECMID in ECM via DLC connector

-  Renew ECM via DLC connector on vehicles equipped with a smartkey system

-  Support for reading KEYID via K-Line to program additional keys when all keys are lost

-  Support ECM codes from Honda manufactured by Shindengen and Keihin

-  Support Honda ECM codes up to the year 2025

-  Connect to the diagnostic DLC connector via K-Line without unlocking ECM

-  Support for nearly 200 ECM codes from Honda

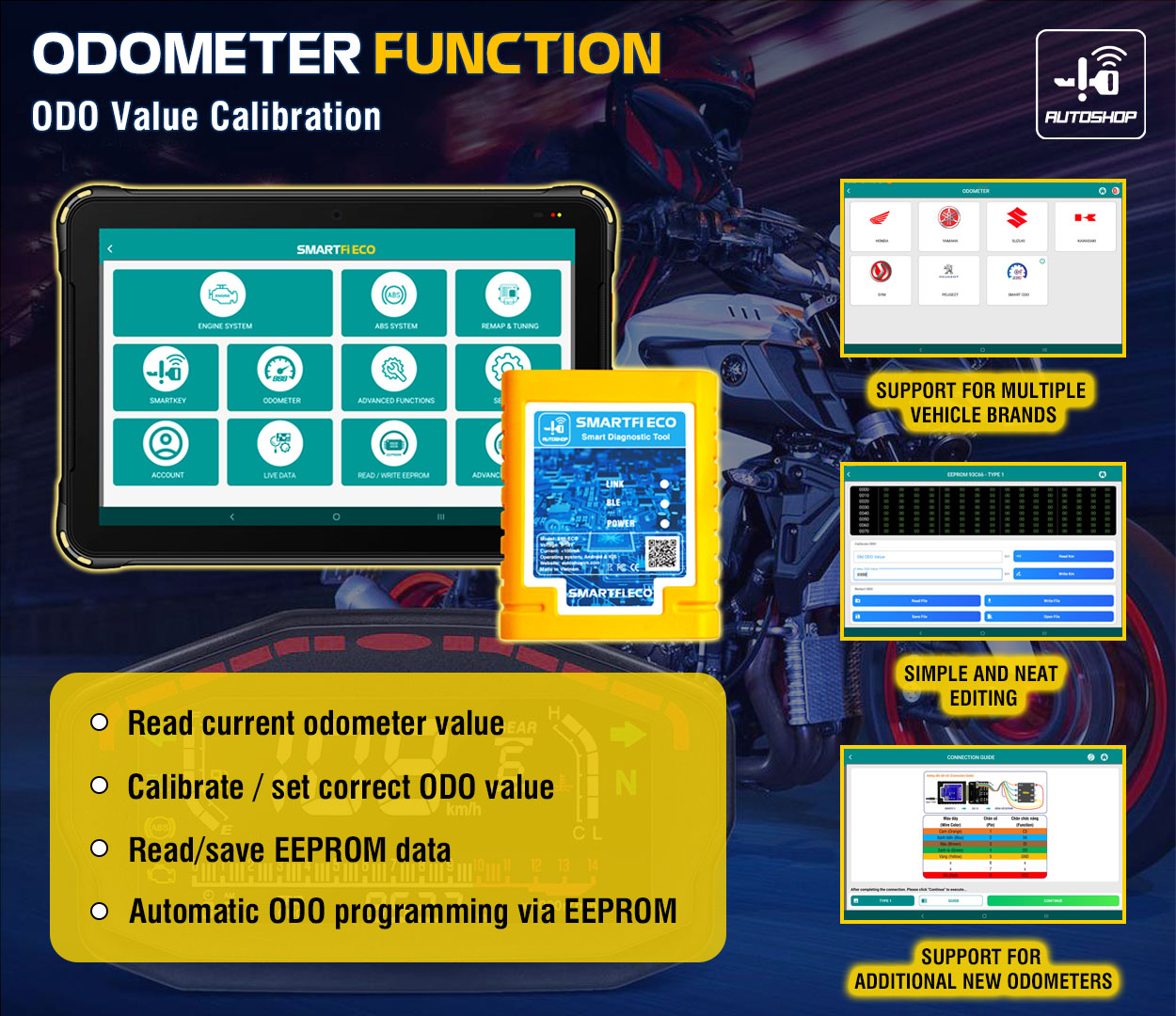

7. ODO value adjustment

-  Read current ODO value

-  Set the correct ODO value

-  Read and save EEPROM data

-  Auto-program ODO via EEPROM

8. Check battery

-  Battery check: quality, capacity, charging
