FUNCTION PACKAGE
$95

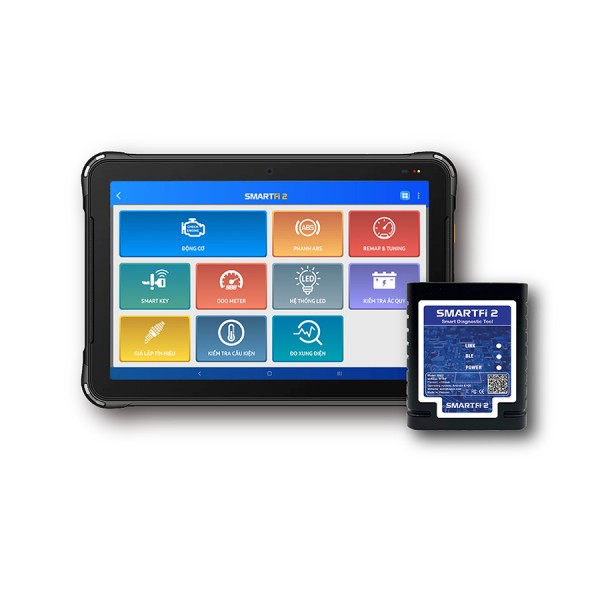

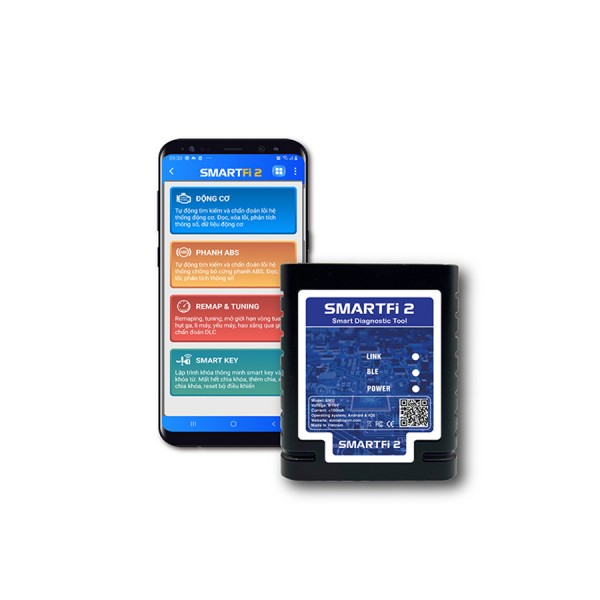

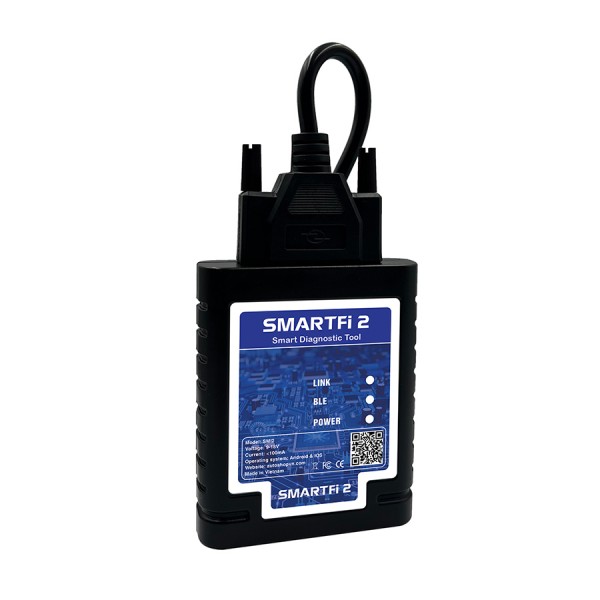

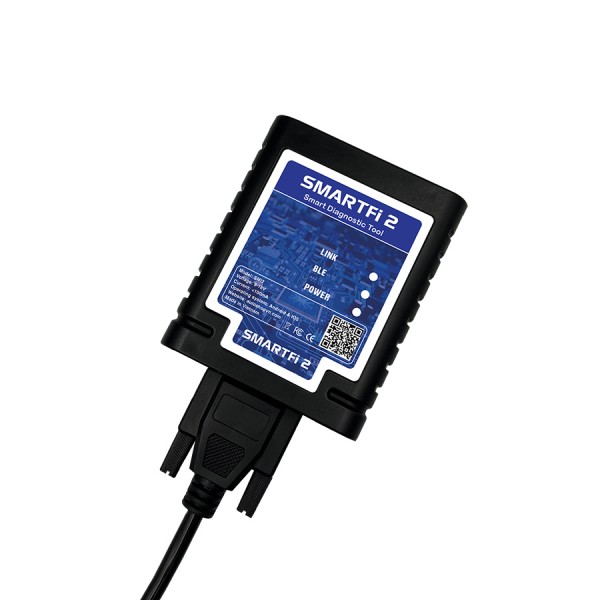

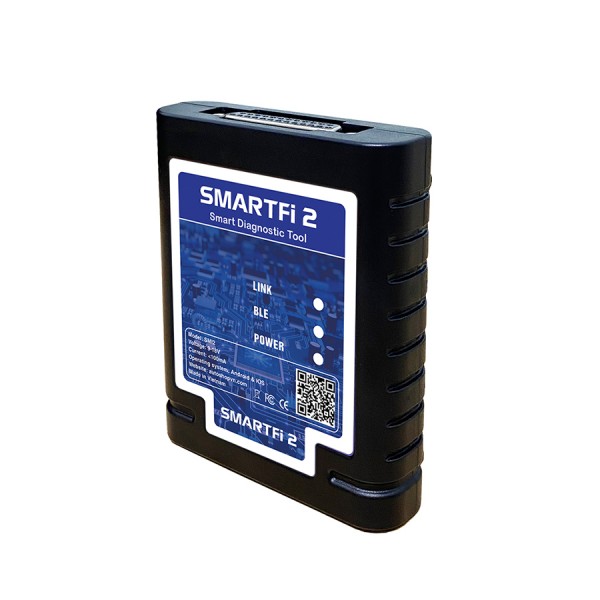

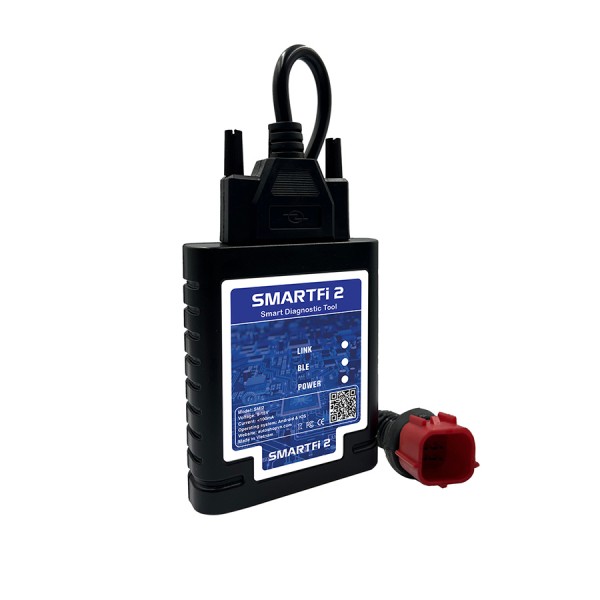

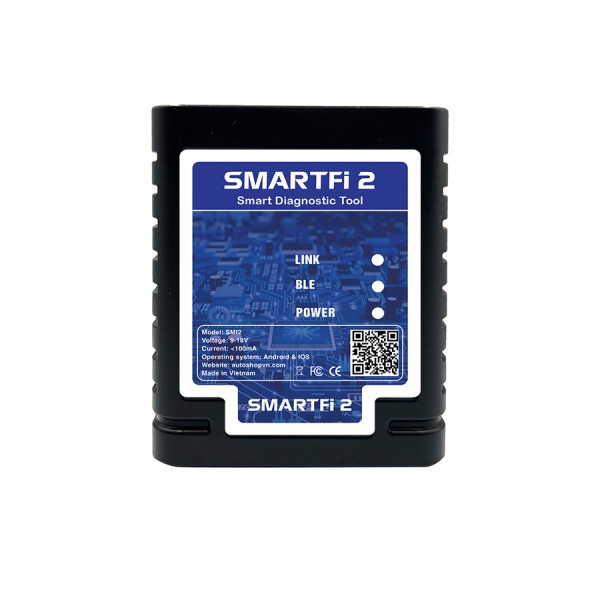

SMARTFi2 is a multifunctional diagnostic device for motorcycles and scooters, utilizing Bluetooth 5.0 technology. The device integrates all functions into one, including diagnostics, remapping, tuning, smartkey programming, immobilizer programming, ODO value adjustment, sensor simulation testing, actuator control, and pulse measurement. It supports the following manufacturers: HONDA, YAMAHA, PIAGGIO, VESPA, SUZUKI, SYM, KYMCO and KAWASAKI.
Advanced function packages that need to be activated to use include: Read and reset ECMID via kline, Activate sensor component simulation test, Activate LED system test, Display oscilloscope pulse, Renew and Programming Yamaha Tmax
FUNCTION LIST
1. Read/renew ECMID code in engine ECM via DLC diagnostic jack
2. Smart key programming for YAMAHA TMAX
3. Activate, test, measure and simulate sensor and actuator signals
4. Check, activate LED system
5. Display oscilloscope pulse
1. Read/renew ECMID code in engine ECM via DLC diagnostic jack
- Read ECMID code in ECM via DLC jack
- Reset ECMID code in ECM via DLC jack
- Renew ECM via DLC jack on vehicles with smartkey system
- Can support reading KEYID code via Kline to program additional keys when all keys are lost
- Support ECM codes of HONDA car brands manufactured by Shindengen and Keihin
- Support ECM codes of HONDA until 2024
- Connect on DLC diagnostic jack via Kline without opening ECM
- Support nearly 200 ECM codes of HONDA brand. See detailed list here
2. Smart key programming for YAMAHA TMAX
* Programming function (154$)
Basic Functions
- Program additional keys when all keys are lost
- Program additional keys
- Delete/OFF lost keys
- Check synchronization between key and smartkey controller
Advanced Functions
- Read KEYID code from SCU controller
- Read KEYID code from lock controller
- Add key when ID code is still available
- Copy/restore original data in SCU
List of supported vehicles: …..
* Read/renew ECMID (100$)
- Read ECMID code in ECM
- Reset ECMID code in ECM - Renew ECM
- Connect to ECM via ECM opening connected to MCU
- Image of connection instructions and opening location on ECM
- Reuse when ECM when ECM no longer has ECMID code
- Support synchronization of SCU and ECU when replacing SCU.
- Support ECM code of YAMAHA TMAX: B7M, BBW, BBV (TMAX – MT09)
3. Activate, test, measure and simulate sensor and actuator signals
- Battery test: quality, capacity, charging system
- Test, evaluate quality: CKP, TP, ECT/OCT, MAP, IAT, O2
- Test speed sensor: VSS, VS, WS
- Measure peak voltage of mobin
- Simulate VSS speed sensor signal for HONDA, YAMAHA, SUZUKI watches
- Simulate CKP crankshaft position sensor 1 lug, 9 lug, 11 lug
- Simulate CKP Hall crankshaft position sensor HONDA, YAMAHA
- Simulate 2-wire and 3-wire VSS speed sensor signal
- Simulate MAP/ECT/OCT/TP/TW/O2 sensor signal
- Test, measure actuator: Mobin, injector, IACV/ISC valve, SOLV fast idle valve, EVAP system solenoid valve
- Simulate control signal: Mobin, injector, idle air valve IACV/ISC, solenoid valve
4. Check, activate LED system
- Enable LED system
- Support LED system check
- Support HONDA and YAMAHA
5. Display oscilloscope pulse
- Displays pulse patterns of sensors and actuators on the vehicle for analysis and testing.
- Supports displaying basic signals such as: CKP, VSS, MAP, TW, TPS, IAT, O2, injectors, mobin
Can be upgraded remotely (online) when the customer already has SMARTFi 2
1. Function to read and renew IMMOID code in HONDA engine ECM via Kline
- Direct operation on the vehicle via dlc diagnostic jack.
- Operate directly with ECU. (Access ALLMOTO application to see the image of the connection location on ECM)
Image showing instructions for operating the device
2. Smart key programming for YAMAHA TMAX
* Programming function
Image showing instructions for operating the device
* Read/renew ECMID - B7M, BBW, BBV (TMAX – MT09)
Image showing instructions for operating the device
3. Functions to activate, test, measure and simulate sensor and actuator signals
- Direct operation on the vehicle via the dlc diagnostic jack.
- Direct operation with sensors and actuators.
Image showing instructions for operating the device
4. Check, activate LED system
Image showing instructions for operating the device
5. Display oscilloscope pulse
Image showing instructions for operating the device
1. Accessory kit for activating, testing, measuring and simulating sensor and actuator signals
.jpg)
2. Oscilloscope Pulse Display Meter
