LIST OF FUNCTIONS
1. ECM Programming (Plus Package): Read/Renew ECMID Honda Kline, Program Key for Piaggio MEDLEY/GTS, etc.
2. ON/OFF Smart Key
3. Read/Write T5 Chip for Piaggio/Vespa
4. Program Smart Key for Yamaha Tmax
5. Renew ECU/ECM Yamaha Tmax (B7M, BBW, BBV, etc.)
6. Advanced ODO Function (ODO adjustment in ECM for NMAX, AEROX, NVX 2021, etc.)
7. Smartkey Yamaha 2025 (Grande, Xmax, Nmax 2025
with SCU code BKA, etc.)
8. Smart Key Function for Piaggio/Vespa
9. Read ESLID From The Steering Lock Via 6-Pin Connector (XADV, FORZA 750, CBR1000RR, etc. From 2021 Onwards)
1. ECM Programming (Plus Package): Read/Renew ECMID Honda Kline, Program Key for Piaggio MEDLEY/GTS, etc. - Option 1
- Read ECMID in ECM via DLC connector
- Reset ECMID in ECM via DLC connector
- Renew ECM via DLC connector on vehicles equipped with a smartkey system
- Support for reading KEYID via K-Line to program additional keys when all keys are lost
- Support ECM codes from Honda manufactured by Shindengen and Keihin
- Support Honda ECM codes up to the year 2025
- Connect to the diagnostic DLC connector via K-Line without unlocking ECM
- Support for nearly 200 ECM codes from Honda
2. ON / OFF smart key
- Start the vehicle when desynchronization occurs between ECM and SCU
- Support SCU replacement when ECMID is not available
- Supports Honda, Yamaha, and Piaggio
3. Read/Write T5 Chip Piaggio/Vespa - Option 3
- Chip programming for Piaggio/Vespa vehicles
- Read KEYID from T5 chip
- Load chip data for Medley vehicles
- Change KEYID in T5 chip
4. Program Smart Key For Yamaha Tmax - Option 4
- Program additional keys when all keys are lost
- Program additional keys
- Delete/OFF lost keys
- Check synchronization between key and smartkey controller
- Read KEYID code from SCU controller
- Read KEYID code from lock controller
- Add key when ID code is still available
- Copy/restore original data in SCU
5. Renew ECU/ECM Yamaha Tmax (B7M, BBW, BBV, etc.) - Option 5
- Read ECMID code in ECM
- Reset ECMID code in ECM - Renew ECM
- Connect to ECM via ECM opening connected to MCU
- Image of connection instructions and opening location on ECM
- Reuse when ECM when ECM no longer has ECMID code
- Support synchronization of SCU and ECU when replacing SCU
- Support ECM code of YAMAHA TMAX: B7M, BBW, BBV (TMAX – MT09)
6. Advanced ODO Function (ODO Calibration In ECU/ECM For NMAX, AEROX, NVX 2021, etc.) - Option 6
- Read current values in ECM
- Set standard ODO values in ECM
7. Yamaha 2025 Smartkey (GRANDE, XMAX, NMAX 2025 With Scu Code BKA, etc.) - Option 6
- Program an additional key when the original key is available
- Delete/OFF lost or dropped keys
- Program a new key when all codes and original keys are lost
- Check and synchronize the key with the smartkey control unit
8. Smartkey Function For Piaggio/Vespa - Option 7
9. Read ESLID From The Steering Lock Via 6-Pin Connector (XADV, FORZA 750, CBR1000RR, etc. From 2021 Onwards) - Option 8
OPTIONS | OPTIONAL FUNCTIONS |
Option 1 | ECM Programming (Plus Package) Read/Renew ECMID Honda Kline, Program Key for Piaggio MEDLEY/GTS, etc. |
Option 2 | ON/OFF Smart Key Honda |
Option 3 | Read/Write T5 Chip for Piaggio/Vespa |
Option 4 | Program Smart Key for Yamaha Tmax |
Option 5 | Renew ECU/ECM Yamaha Tmax (B7M, BBW, BBV, etc.) |
Option 6 | Advanced ODO Function (ODO adjustment in ECM for NMAX, AEROX, NVX 2021, etc.) and Smartkey Yamaha 2025 (Grande, Xmax, Nmax 2025 with SCU code BKA, etc.) |
Option 7 | Smart Key Function for Piaggio/Vespa |
Option 8 | Read ESLID From The Steering Lock Via 6-Pin Connector (XADV, FORZA 750, CBR1000RR, etc. From 2021 Onwards) |

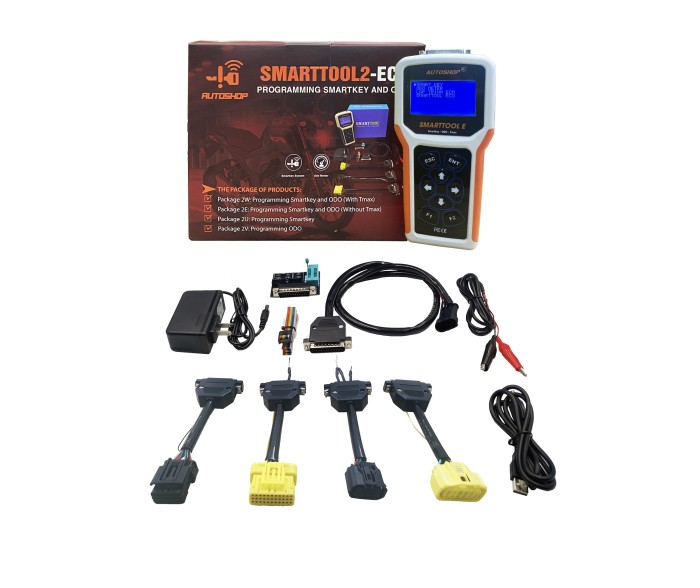

SMARTTOOL ECO plus version accessory set
